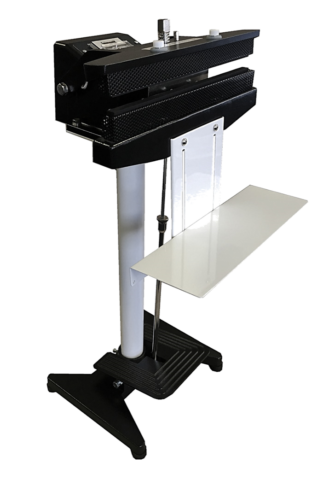

ME400CFN – 400mm Constant Heatsealer -foot operated MEC Brand

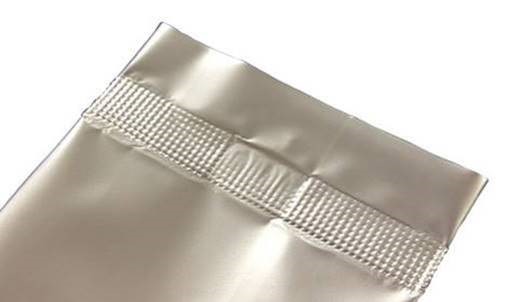

The ME400CFN is an industrial-grade, foot-operated 400mm constant heat sealer, designed for high-integrity sealing of foil, laminated, and thick plastic packaging materials. With an extended 400mm sealing length and a 15mm wide embossed seal, this unit is ideal for sealing bulkier or wider format bags containing powders, liquids, grains, foodstuffs, medical products, and more — wherever a watertight and airtight finish is required.

Unlike impulse sealers, the ME400CFN uses direct, constant heat, applied through top and bottom stainless steel jaws with a non-stick Teflon coating. This ensures even temperature and pressure distribution across the full seal width and length — especially important for multi-layer laminates, BOPP, PP, foil-lined packaging, and coated papers up to 200 microns thick.

A digital thermostat allows the operator to adjust sealing temperatures from 30°C to 200°C, while a timing light and audio signal provide accurate control over each sealing cycle. The manual foot pedal operation leaves both hands free to guide and support the bag — ideal for handling large, heavy, or delicate products.

With a generous 85cm sealing height and rugged steel frame, the ME400CFN is built for industrial use and daily production. Weighing 20kg, it provides excellent sealing stability and operational durability.

MIPAQ stocks a full range of original MEC spares and accessories, supporting long-term maintenance and cost-effective performance.

✅ Applications for ME400CFN 400mm Constant Heat Sealer

• Sealing foil, BOPP, PP, and laminated bags

• Food packaging: grains, powders, spices, liquids

• Medical-grade and pharmaceutical pouches

• Foil coffee bags, herbal teas, or specialty powders

• Industrial packaging of hardware, automotive parts, or electronics

✅ Specifications

• Model: ME400CFN

• Seal Length: 400mm

• Seal Width: 15mm (embossed)

• Temperature Range: 30°C – 200°C

• Power Consumption: 420W

• Voltage: 230V–240V / 50Hz

• Plug Type: M-16A

• Jaws: Stainless steel, Teflon-coated

• Max Material Thickness: 200 micron

• Seal Height: 85cm

• Weight: 20kg
