CN4040A – Shrink Tunnel – Infrared 400mm x 400mm – 240V

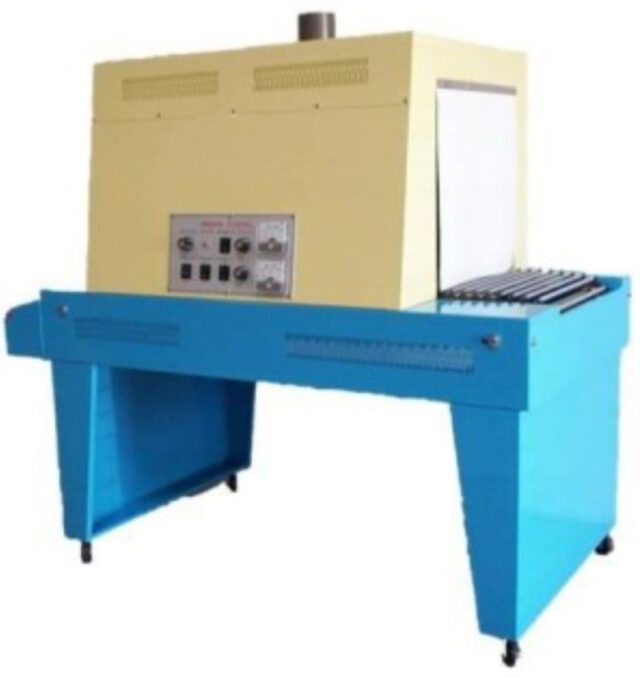

CN4040A Infrared Shrink Tunnel – High-Volume Infrared Packaging System

The CN4040A Infrared Shrink Tunnel is a high-performance packaging tunnel designed for uniform, high-speed shrink wrapping of retail and industrial products. Using infrared heat from above, below, and both sides, this unit ensures consistent and wrinkle-free shrinking on all surfaces of the package — delivering a clean, retail-quality finish.

Equipped with an easy-to-use control board, the CN4040A allows the operator to adjust both the chamber temperature and conveyor speed, offering flexibility for a wide variety of product types and shrink film thicknesses. The tunnel is engineered for integration with L-Sealing machines, I-Bar systems, and other pre-packing equipment.

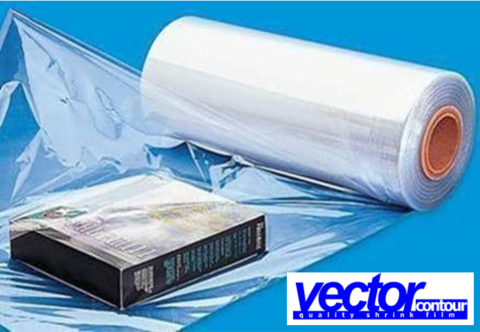

Optimised specifically for use with VECTOR polyolefin (POF) centerfold shrink film, this model is ideal for packaging:

• Stationery and books

• CDs, DVDs, and printed media

• Mobile phones and electronics

• Toys, cosmetics, and gifts

• Pharmaceutical cartons

• Boxed items or multipacks

With its generous 400mm x 400mm chamber capacity, the CN4040A is well-suited for high-volume shrink operations, comfortably handling 2,000–5,000 packs per day depending on the product and operator workflow.

Powered by a robust 7.2kW heating system, this machine delivers efficient, consistent results with minimal maintenance. It runs on standard 240V/50Hz single-phase power and requires a 28 Amp dedicated circuit.

MIPAQ supports all shrink tunnels with spare parts, maintenance kits, and expert technical guidance.

✅ 2. Specifications

• Model: CN4040A Infrared Shrink Tunnel

• Max Pack Width: 400mm

• Max Pack Height: 400mm

• Heating Type: Infrared – top, bottom, side

• Power Supply: 240V / 50Hz / Single Phase

• Power Consumption: 7.2kW (28 Amp)

• Applications: Shrink wrapping of boxed goods, retail packs, media, electronics

• Optimised For: VECTOR Polyolefin (POF) shrink film
